Description

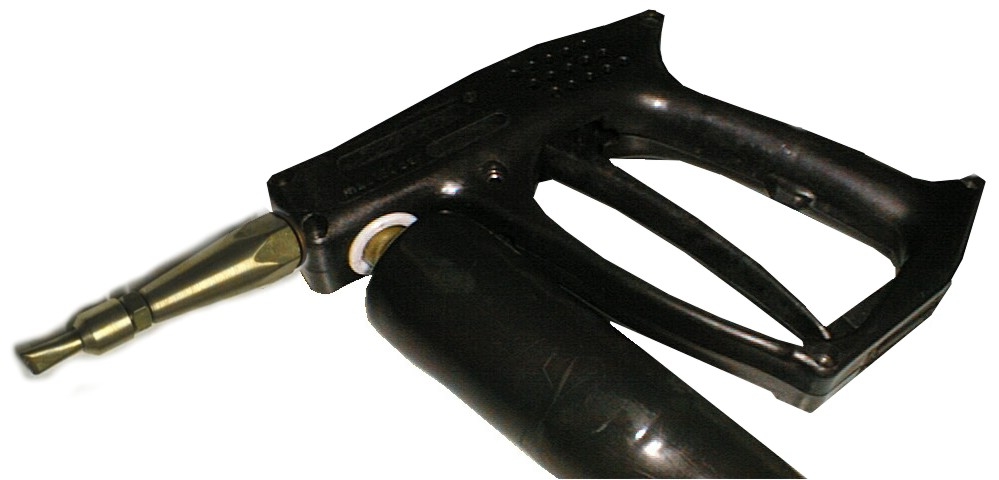

HOT-MELT glue applicator with microprocessor, easy use and carrying, can be added to a production line since dispenser operation can be handled by an external PLC., can be use with an manual applicator gun.

-two outlets for pipes
-programmable weekly Timer
-ECONOMY function for pauses in the productive process
-the varius processing phases appear on the display and a code is used to indicate any alarms or faults
-mechanical gear pump
-operating frequency of applicator

OPTIONAL:
-Loading Cell
-Speed Variator

Additional information

Tipi di Adesivi	Hot Melt, Pur Hot Melt
Applicatori	Glue valve application systems, Manual guns or with brush, Spray equipments

Technical Data

MELTING CAPACITY KG/h 4
TANK CAPACITY Kg 7
MAX. APPLICATION VISCOSITY cps 7.500
PRESSURE BAR 0�35
MOTOR HP 0,5
POWER RATING 230V/50HZ
ABSORBED POWER Kw 2,5�3
MAX OPERATING TEMPERATURE �C 199
WIDTH cm 50
LENGHT cm 35
HEIGHT cm 45
