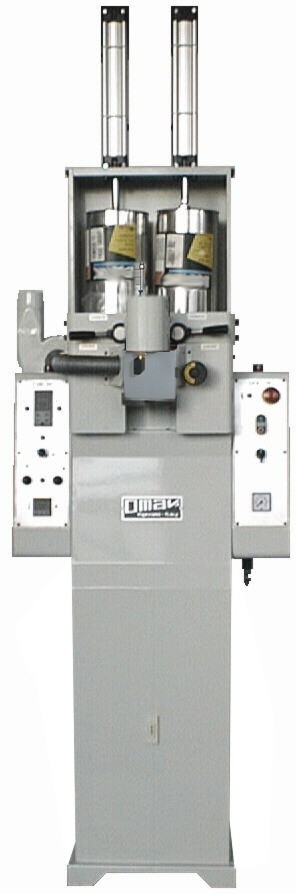

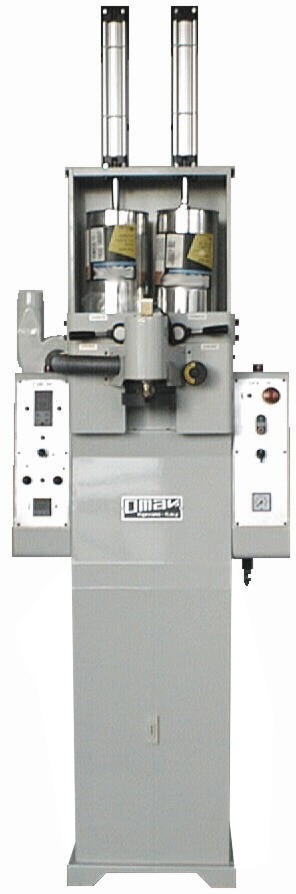

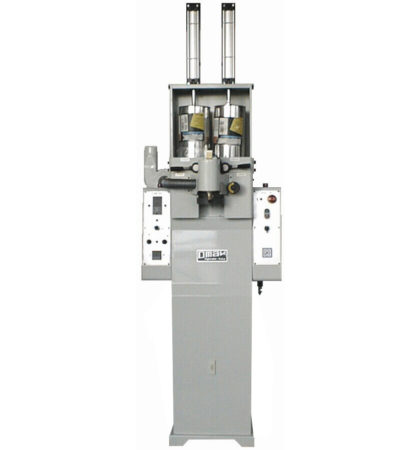

ROTATING BRUSH APPLICATION FOR HOT MELT REACTIVE PU ADHESIVES.

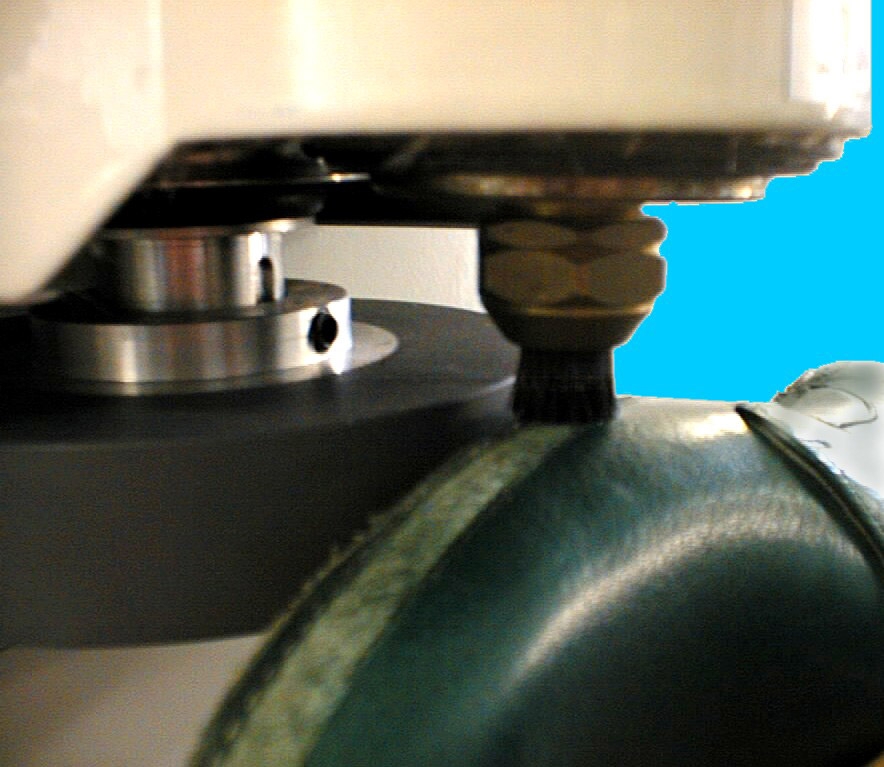

Rotating brush machine for the application of hot meltpolyurethane adhesives suitable for the under edge of lasted/roughed uppers and the edges of soles with welt or low side wall.
The standard version is supplied complete with a guide for shoes edge and another for the sole edge and the brush is equipped with an adjustable nose to regulate the length of the bristles.

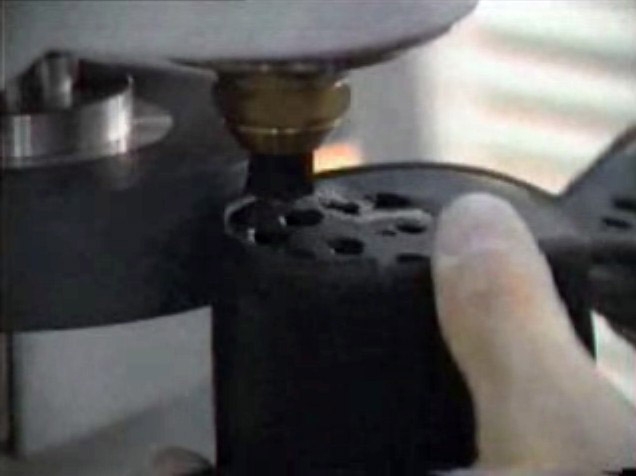

The adhesive is applied by rotating the shoe or the sole placed on the guide and by activating the pedal that distributes the adhesive.
The rotation speed of the brush and the guide are independent to ensure maximum glue penetration through brush action, in spite of the work speed (learning rate, type of shoe, etc.)
A high precision adhesive quantity control is mounted on the distributor and the pump rate can also be adjusted. The brush can be replaced easily and rapidly and the machine is designed for an inert gas system for product reaction control according to model.
HK TYPE: double melter for 2.5kg drums
BK TYPE: double melter for 5Kg hoses
HF TYPE: for connection to external melters
BF TYPE: for bottom fill process
Additional information
Tipi di Adesivi
Pur Hot Melt
Applicatori
Glue valve application systems
Technical Data
LENGTH cm 72 WIDTH cm 80 HEIGHT cm 190/230/140 WEIGHT Kg. 200/200/140 HEATING POWER watt 6000/6000/1000 INSTALLED POWER Hp. 0,5/0,5/0,25
Photo Gallery
Applications
Video Gallery
OMAV Mod. S.PUR 98 HK/BK/HF Sole edge glueing.

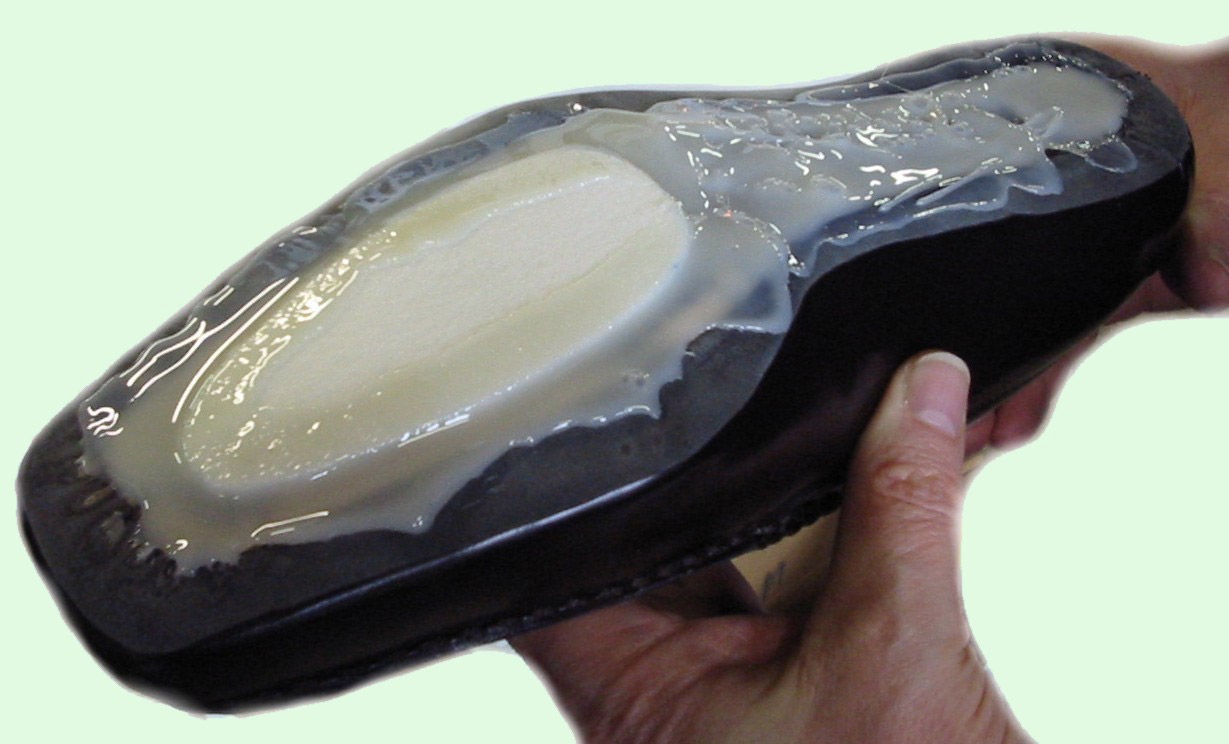

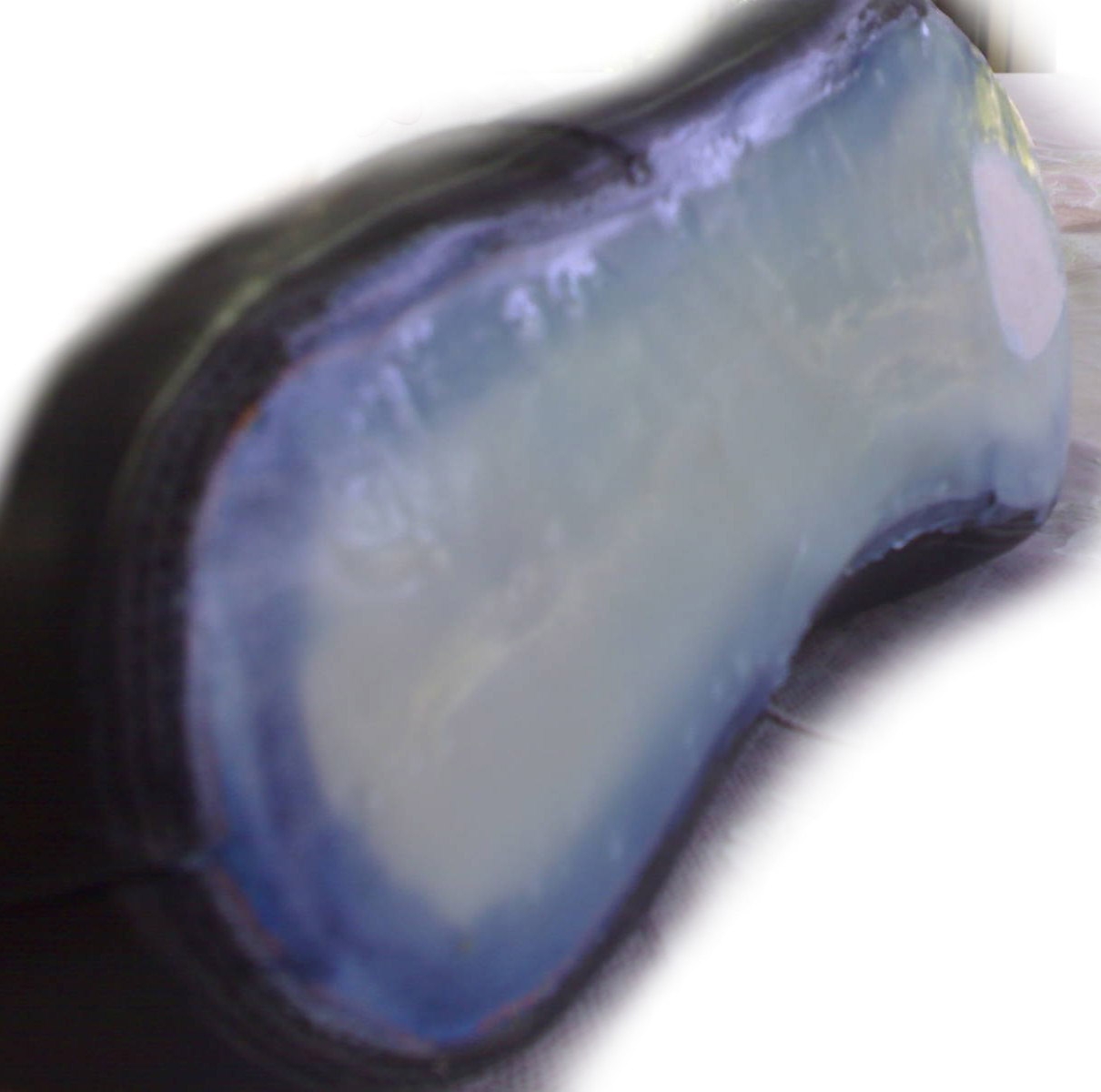

OMAV Bottom Fill Process (short overview) Bottom fill coating.
Description
ROTATING BRUSH APPLICATION FOR HOT MELT REACTIVE PU ADHESIVES.

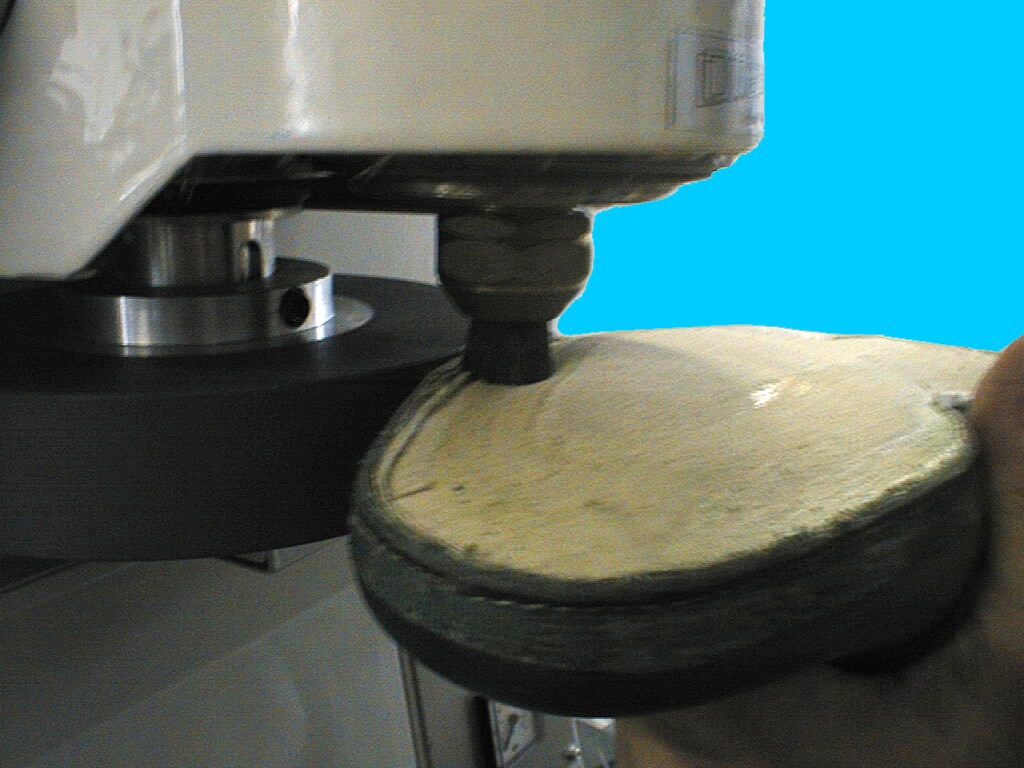

Rotating brush machine for the application of hot melt polyurethane adhesives suitable for the under edge of lasted/roughed uppers and the edges of soles with welt or low side wall.
The standard version is supplied complete with a guide for shoes edge and another for the sole edge and the brush is equipped with an adjustable nose to regulate the length of the bristles.
The adhesive is applied by rotating the shoe or the sole placed on the guide and by activating the pedal that distributes the adhesive.
The rotation speed of the brush and the guide are independent to ensure maximum glue penetration through brush action, in spite of the work speed (learning rate, type of shoe, etc.)
A high precision adhesive quantity control is mounted on the distributor and the pump rate can also be adjusted. The brush can be replaced easily and rapidly and the machine is designed for an inert gas system for product reaction control according to model.
HK TYPE: double melter for 2.5kg drums
BK TYPE: double melter for 5Kg hoses
HF TYPE: for connection to external melters
BF TYPE: for bottom fill process
Additional information
Pur Hot Melt
Glue valve application systems
Technical Data
LENGTH cm 72
WIDTH cm 80
HEIGHT cm 190/230/140
WEIGHT Kg. 200/200/140
HEATING POWER watt 6000/6000/1000
INSTALLED POWER Hp. 0,5/0,5/0,25
Photo Gallery
Applications
Video Gallery

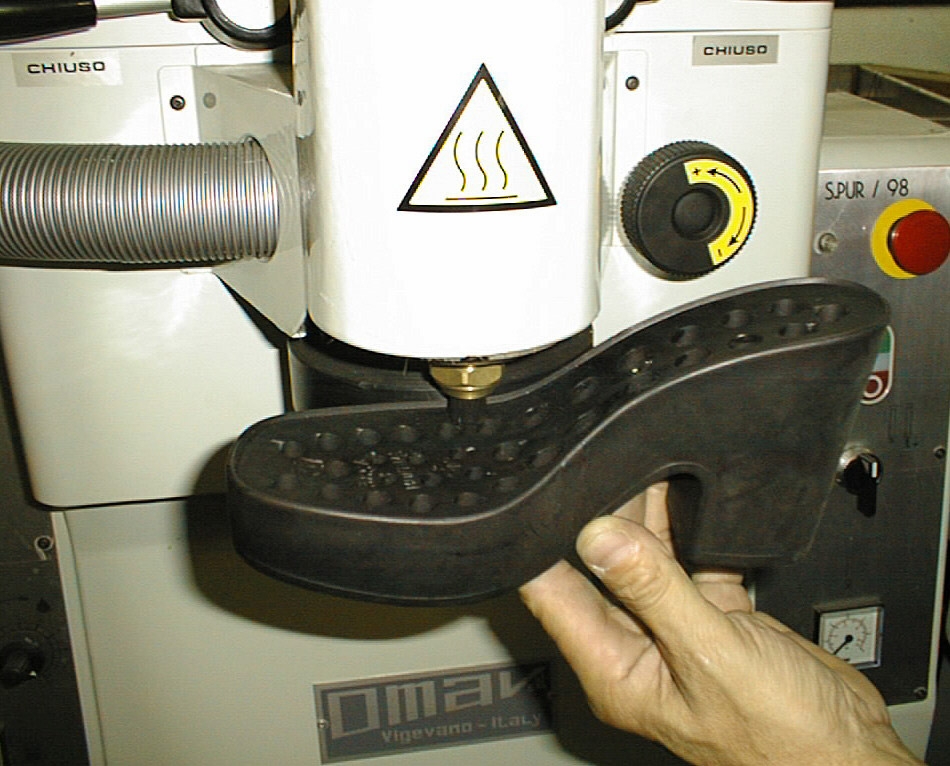

OMAV Mod. S.PUR 98 HK/BK/HF
Sole edge glueing.
OMAV Bottom Fill Process (short overview)
Bottom fill coating.
