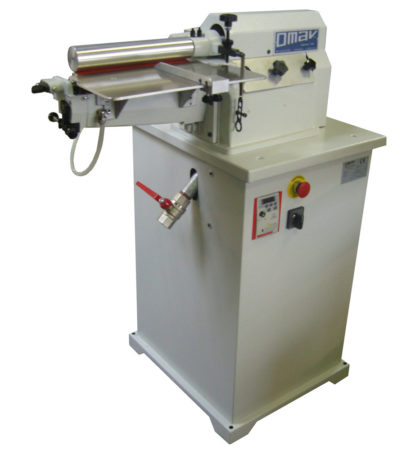

SC 65 C
Varnish Soft roll applicator 265 mm from below
SKU: N/A Categories: SHOE MAKING, Vamps Varnishing
Description

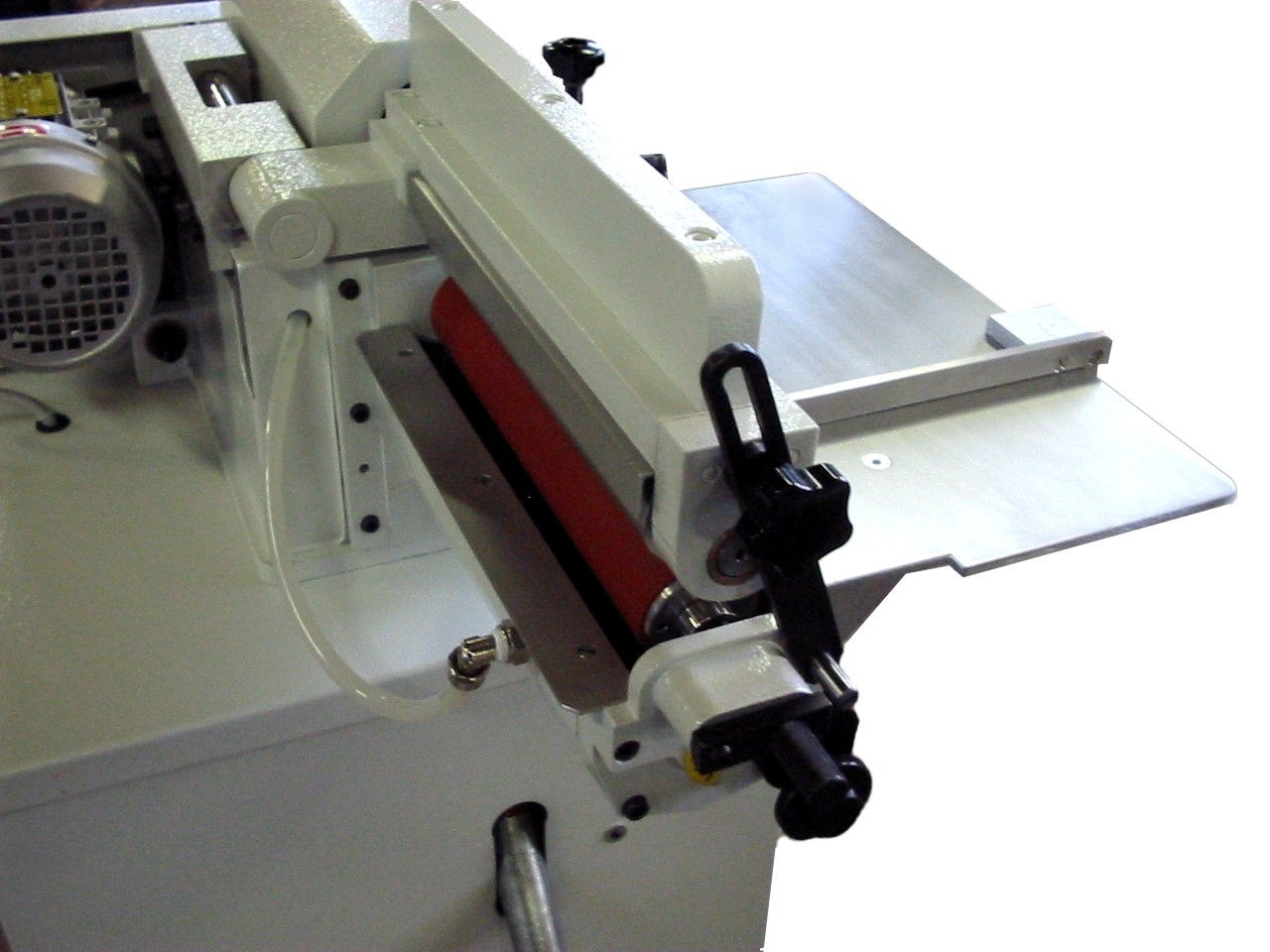

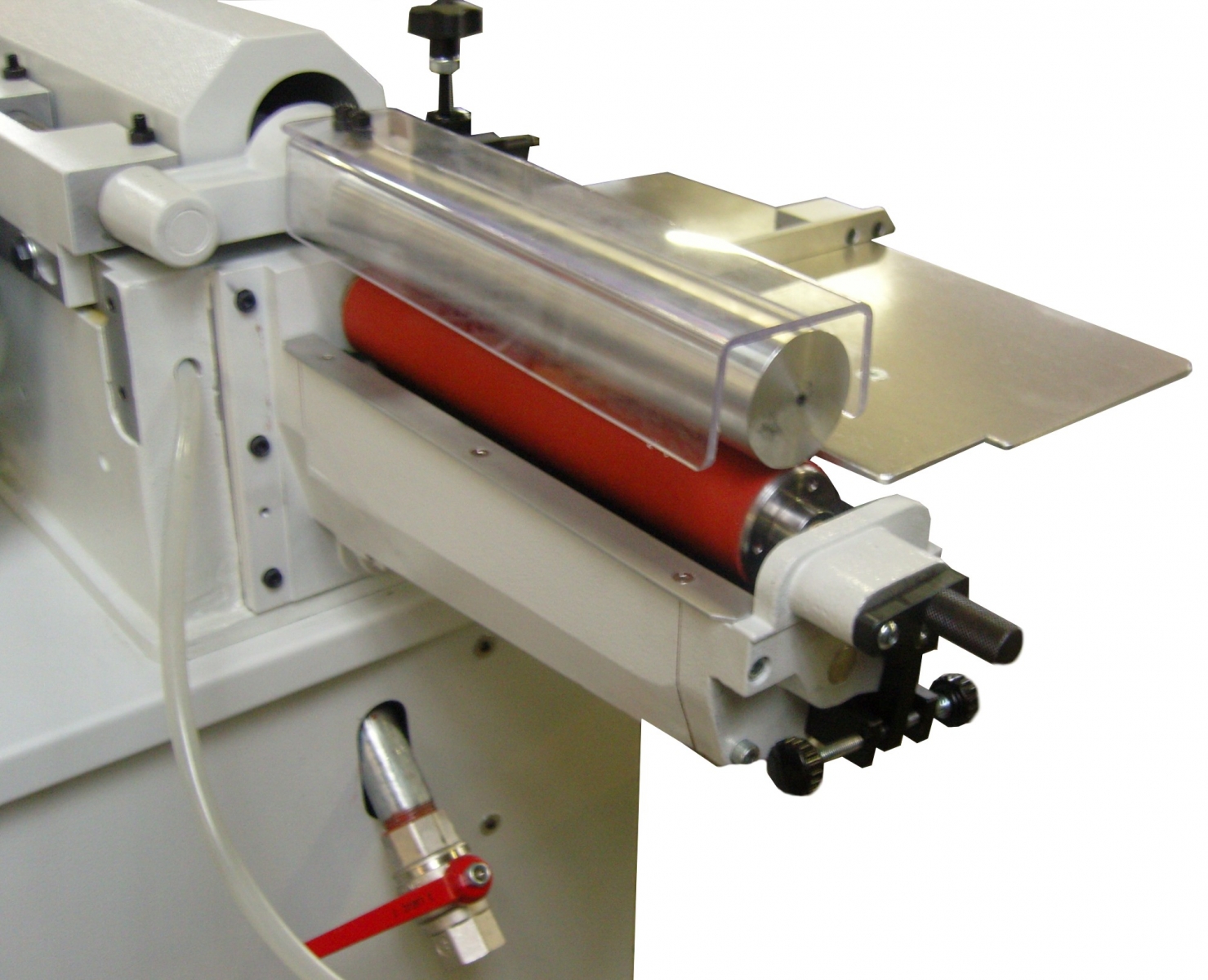

Roll coater specifically adapted for the application of varnish onto crust cut vamps parts to be applied as background color in one or more imemdiate passes; application is carried out by the rectified soft roller on lower part of the machine.
The coater is developped with all necessary technical options for the specific use with varnish.
It has been developped for solvent or anchool based varnishes (tested and used with products from Kenda Faben Chemical Industry).
Rolls’ electronic speed variator available.
The application and drive rollers are rapidly and easily removed.
The machine can be equipped with a aspirator hood.
Additional information
Other Applications, Solvent Based
Roller applicators from bottom side
Technical Data
LENGTH cm. 75
WIDTH cm. 70
HEIGH cm. 105
WEIGHT Kg. 60
INSTALLED POWER HP 0,25
WORKIGN WIDTH mm. 265

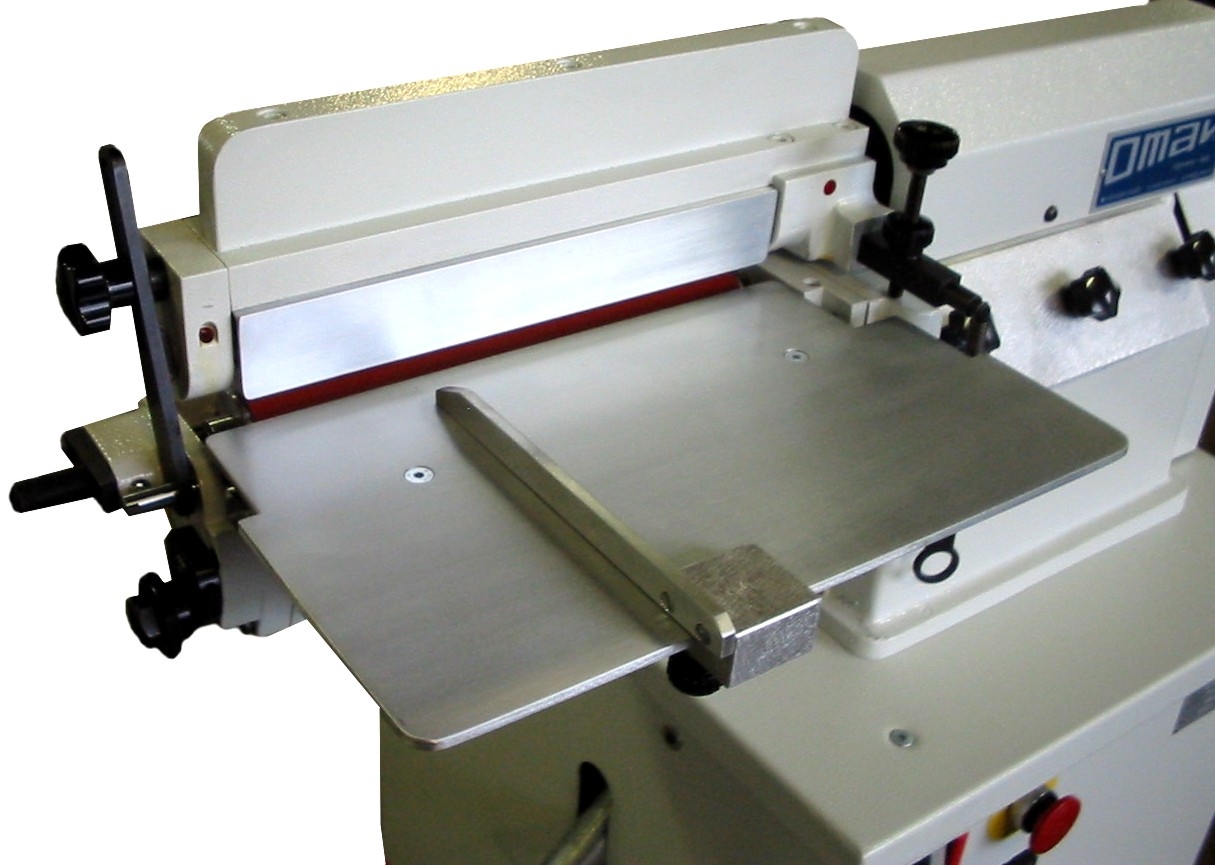

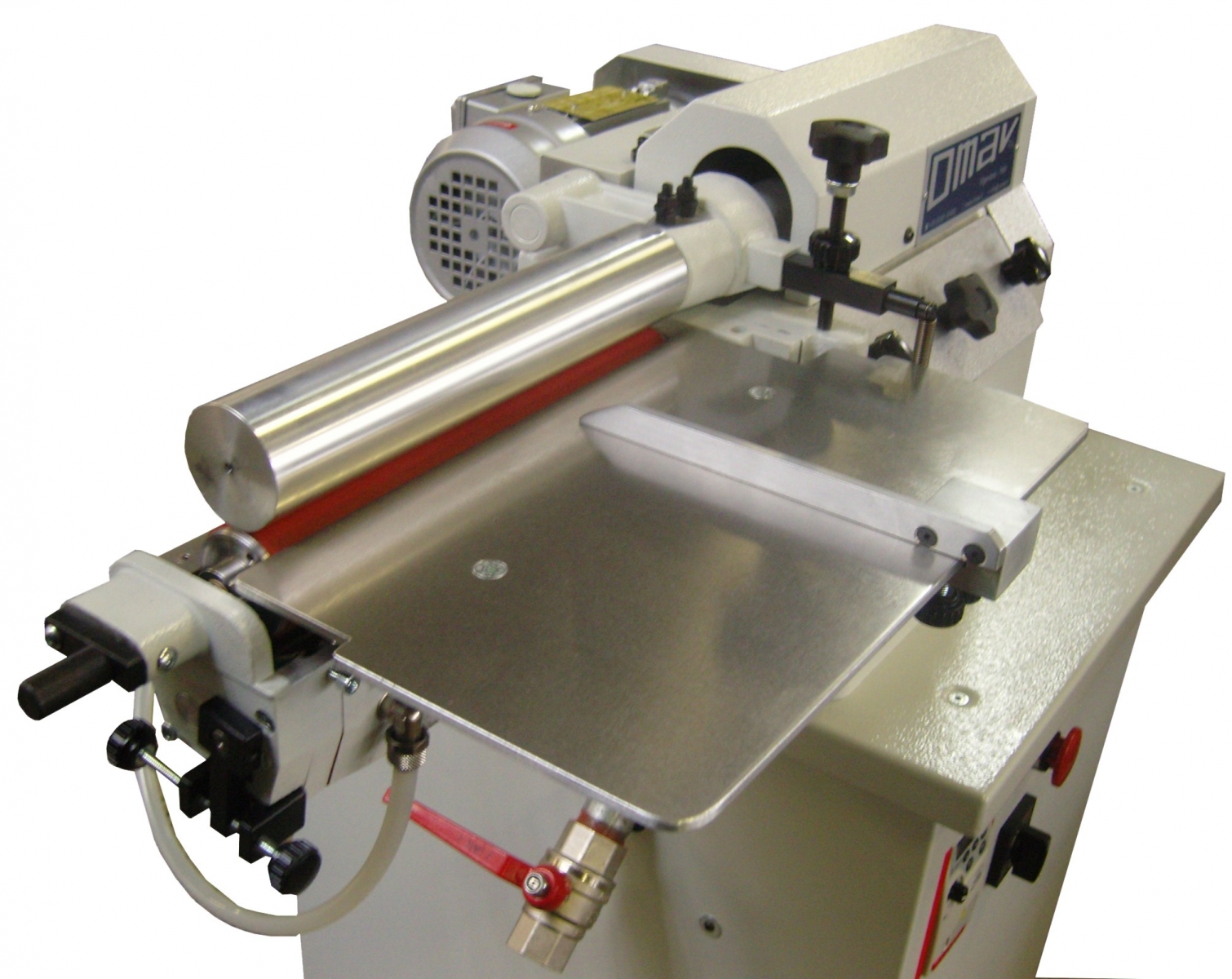

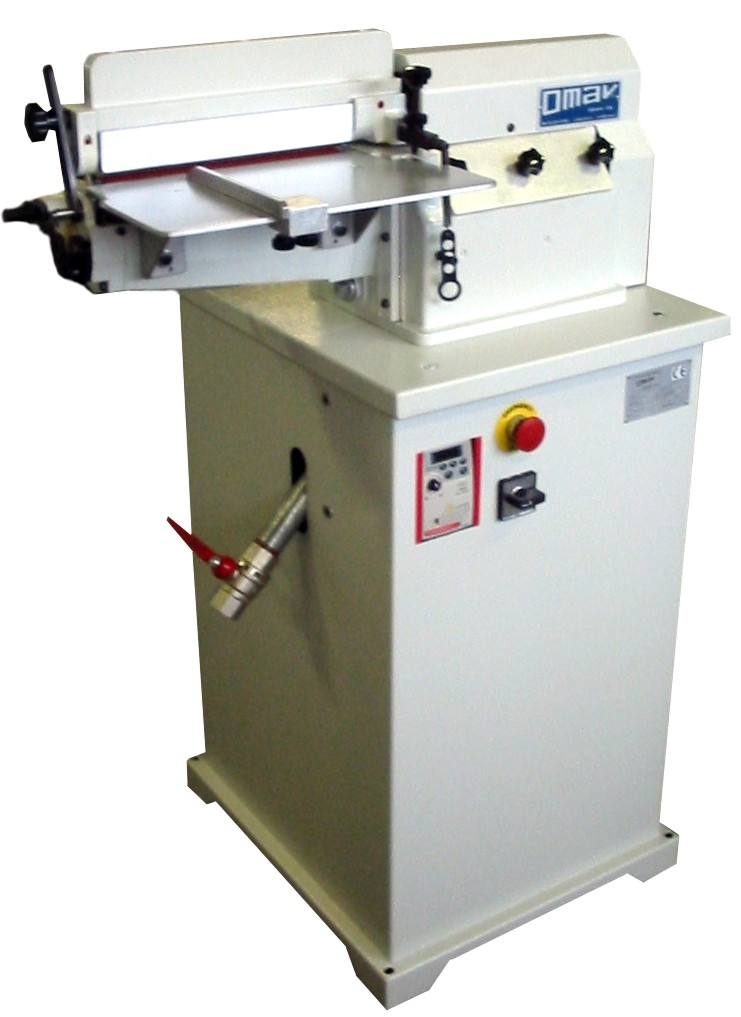

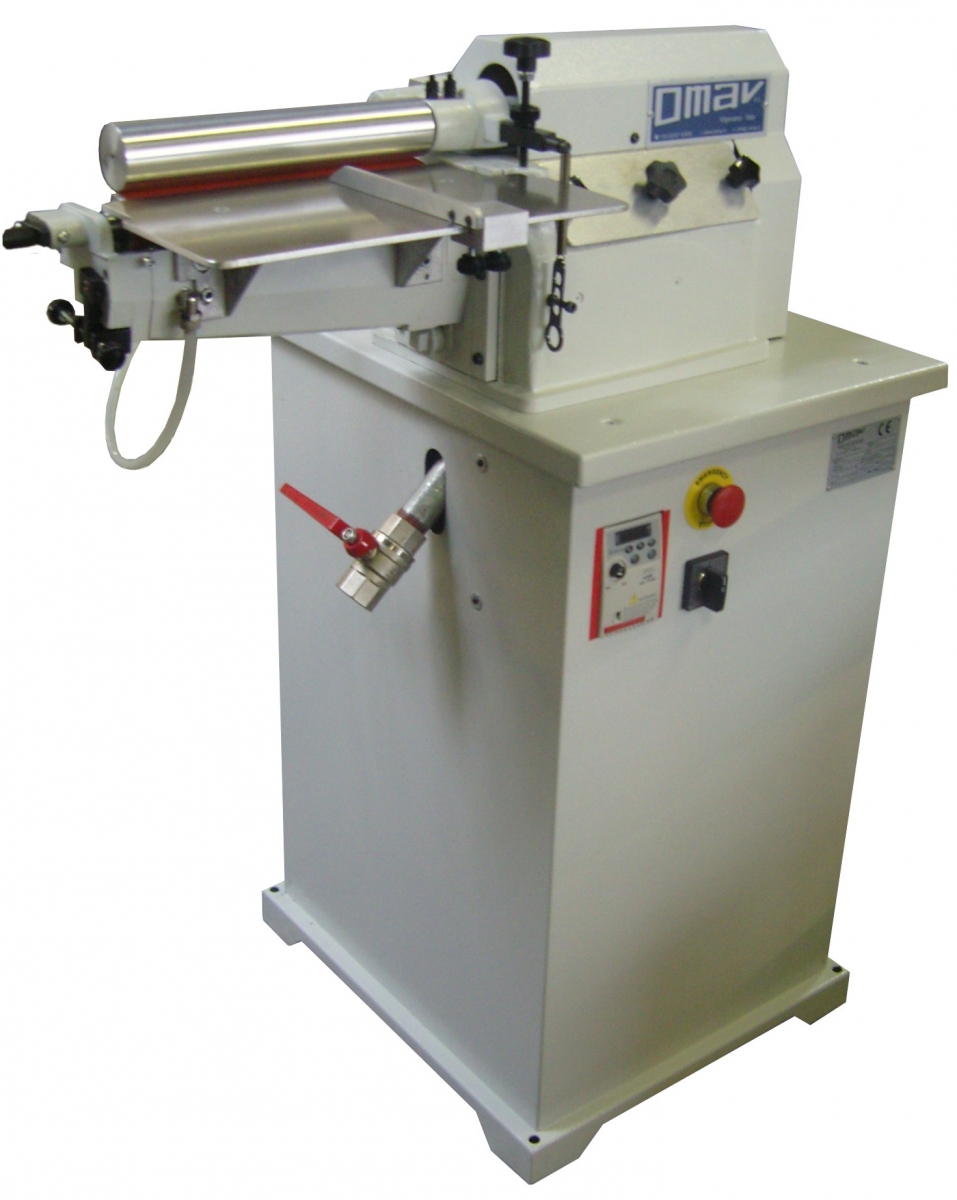

Photo Gallery
Applications
