Double side 165 & 265 mm soft roll applicator
This product is currently out of stock and unavailable.

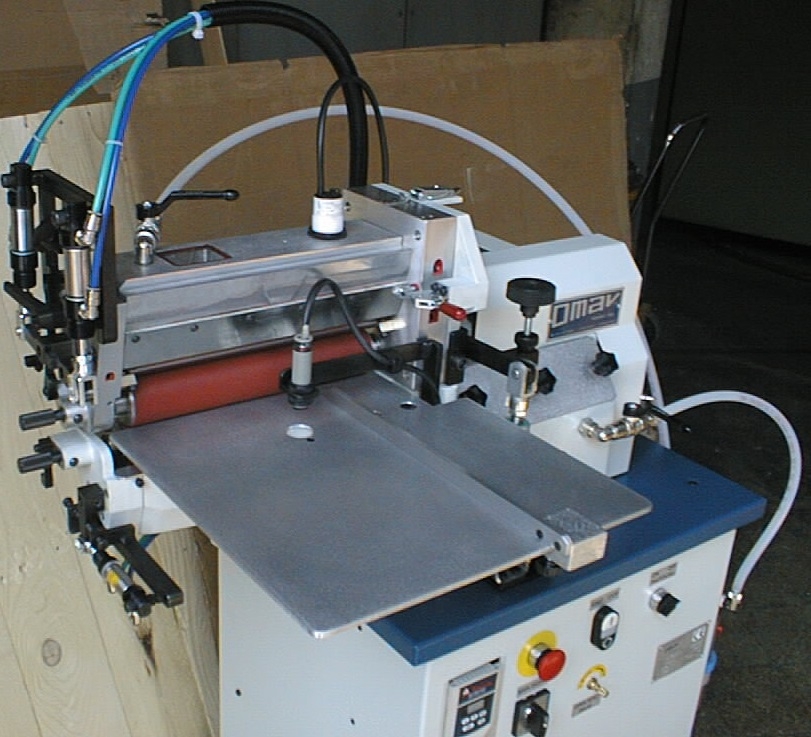

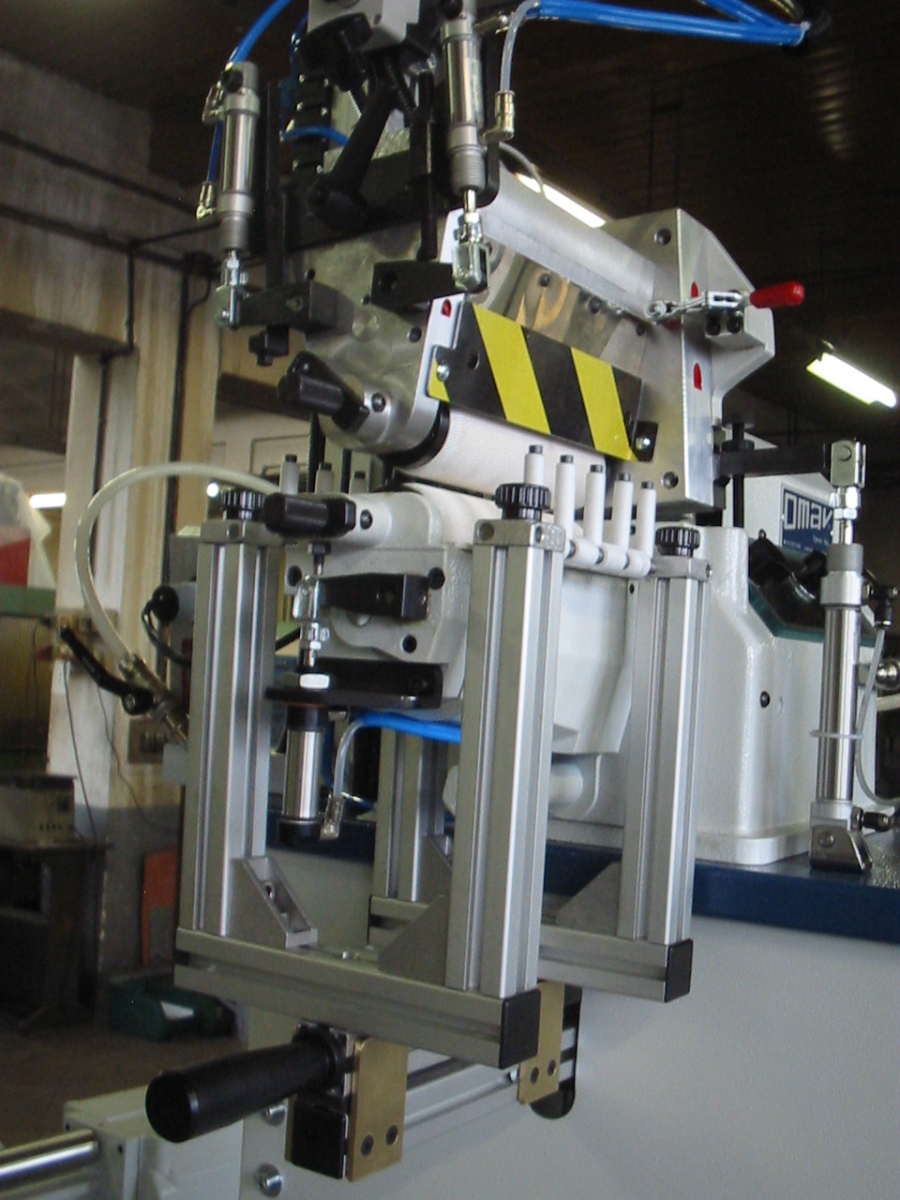

Double side gluing machine with soft rollers to apply adhesive on both surfaces even if not perfectly flat, simultaneously and in a uniform manner.
Suitable for neoprene, PU, adhesives with activators ( if equipped with gear pump) and all solvent based adhesives in general.

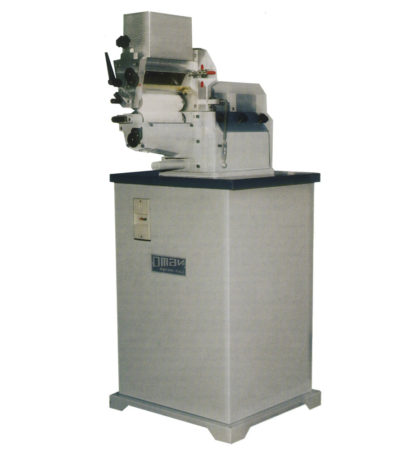

Standard version on base . Electronic speed variator available.
This machine can be connected to the 2C mod. containers series for supply on request without pouring adhesives into the machine.
Rollers with various degrees of softness and surface finishes are available.
The gluing rollers are also easily removed and the upper part of the machine is completely extractable for quick easy cleaning operations.
The machine can be equipped with a aspirator hood.
Solvent Based
Both sides roller applicators
ROLLERS WIDTH mm. 165/265 WIDTH cm. 60 LENGHT cm. 80 HEIGHT cm. 140 WEIGHT Kg. 85 MOTOR POWER Hp. 0,35
OMAV Mod. SD 71/ SD 71L
Description
Double side gluing machine with soft rollers to apply adhesive on both surfaces even if not perfectly flat, simultaneously and in a uniform manner.
Suitable for neoprene, PU, adhesives with activators ( if equipped with gear pump) and all solvent based adhesives in general.
Standard version on base . Electronic speed variator available.
This machine can be connected to the 2C mod. containers series for supply on request without pouring adhesives into the machine.
Rollers with various degrees of softness and surface finishes are available.
The gluing rollers are also easily removed and the upper part of the machine is completely extractable for quick easy cleaning operations.
The machine can be equipped with a aspirator hood.
Additional information
Solvent Based
Both sides roller applicators
Technical Data
ROLLERS WIDTH mm. 165/265
WIDTH cm. 60
LENGHT cm. 80
HEIGHT cm. 140
WEIGHT Kg. 85
MOTOR POWER Hp. 0,35
Photo Gallery

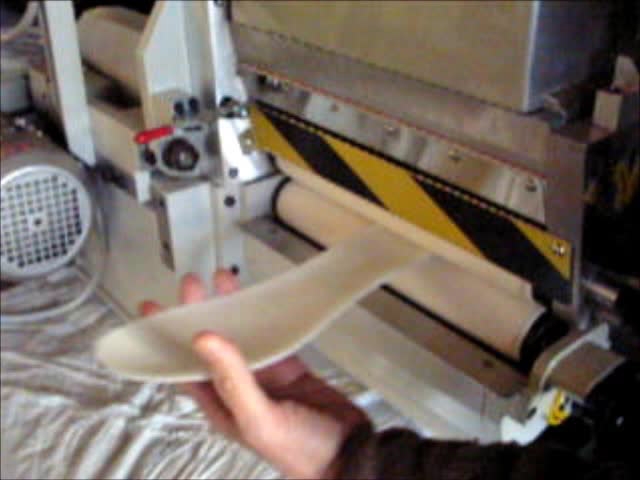

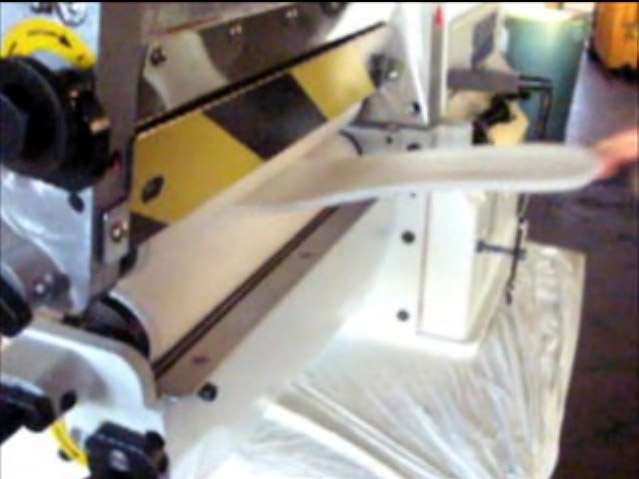

Applications
Video Gallery
OMAV Mod. SD 71/ SD 71L
