Description

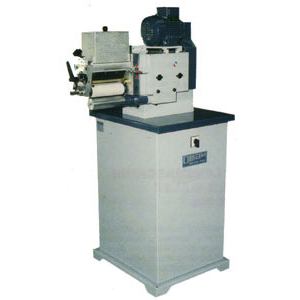

Gluing machine for adhesive application from above on soles and all materials that are not perfectly flat. Application is carried out by the soft roller on upper part of the machine.

Suitable for neoprene, PU, adhesives with activators and all solvent based adhesives in general.

Standard version on base.

Electronic speed variator available. This machine can be connected to the 2C mod. containers series for supply on request without pouring adhesives into the machine.Rollers with various degrees of softness and surface finishes are available.

The application head is easily extracted for rapid simple cleaning and gluing and drive rollers are also easily removed. The machine can be equipped with a aspirator hood.

Important: CA version.

Stainless steel version available for water based adhesives.

Additional information

Tipi di Adesivi	Solvent Based
Applicatori	Roller applicators from top side

Technical Data

LENGHT SR 89 cm. 70 – SR 89L cm. 80
WIDTH cm. 60
HEIGHT cm. 135
WEIGHT SR 89 kg. 70 – SR 89L kg.75
INSTALLED POWER HP 0,35
WORK SPEED Mt/min 15
GLUING WIDTH SR 89 mm. 160 – SR 89L mm. 260
