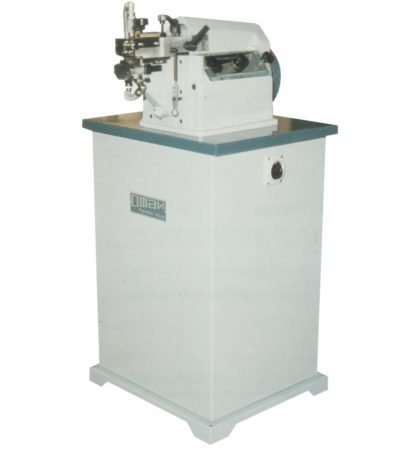

Gluing machine for simultaneous adhesive application on both sides of the piece edge up to 24 mm mainly for leathergoods in general and certain shoe parts.
Standard version on base with adjustable height and gear pump plus edge guide.
This machine can be connected to the 2C mod. containers series for supply on request without pouring adhesives into the machine.
Additional information
Tipi di Adesivi
Primers, Solvent Based
Applicatori
Both sides roller applicators
Technical Data
WIDTH cm 56 LENGTH cm 60 HEIGHT cm 112 WEIGHT Kg. 51 INSTALLED POWER Hp. 0,35 WORK SPEED mt/min. 12,5 GLUING WIDTH mm. 24
Description
Gluing machine for simultaneous adhesive application on both sides of the piece edge up to 24 mm mainly for leathergoods in general and certain shoe parts.
Standard version on base with adjustable height and gear pump plus edge guide.
This machine can be connected to the 2C mod. containers series for supply on request without pouring adhesives into the machine.
Additional information
Primers, Solvent Based
Both sides roller applicators
Technical Data
WIDTH cm 56
LENGTH cm 60
HEIGHT cm 112
WEIGHT Kg. 51
INSTALLED POWER Hp. 0,35
WORK SPEED mt/min. 12,5
GLUING WIDTH mm. 24
Photo Gallery
Applications
Video Gallery
OMAV MOD. T 67 D
